1Columns
Suitable for 101mm diameter columns. Compatible with 76mm and 89mm diameter columns using optional reducers.
Juno
Range
The Juno range consists of four pole top luminaires designed to bring harmony to a variety of car park and general amenity applications.
Juno A
Centrally mounted luminaire with 360° light distribution.

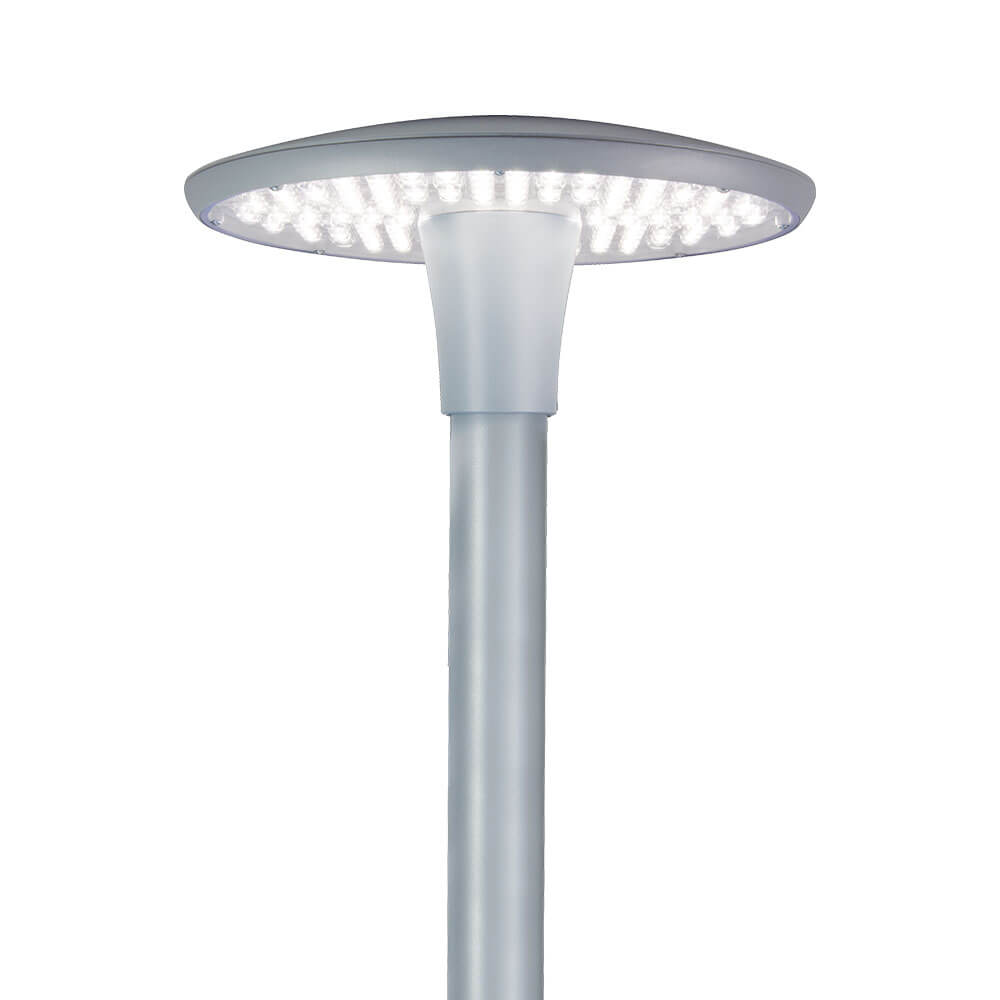

Juno B
Centrally mounted luminaire with symmetrical or asymmetrical light distribution and zero upward light.

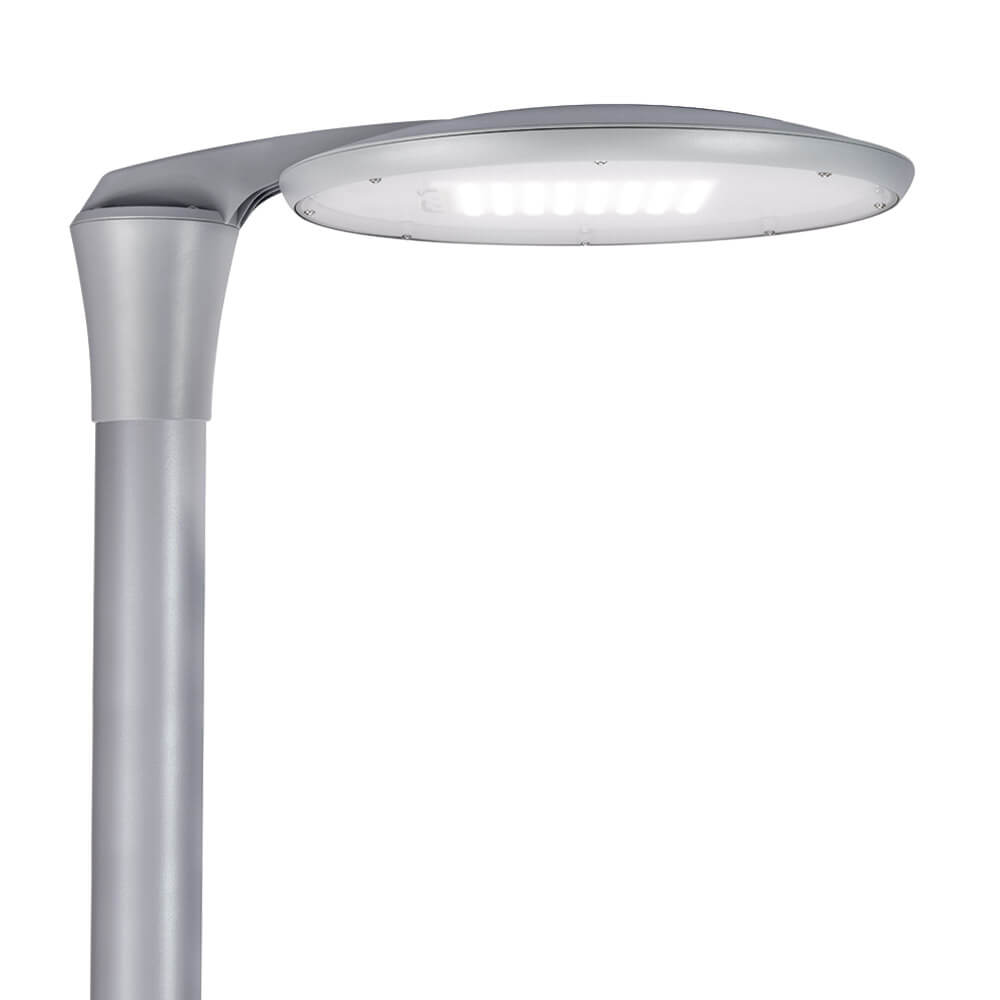

Juno C
Offset mounted luminaire with forward light distribution and zero upward light.

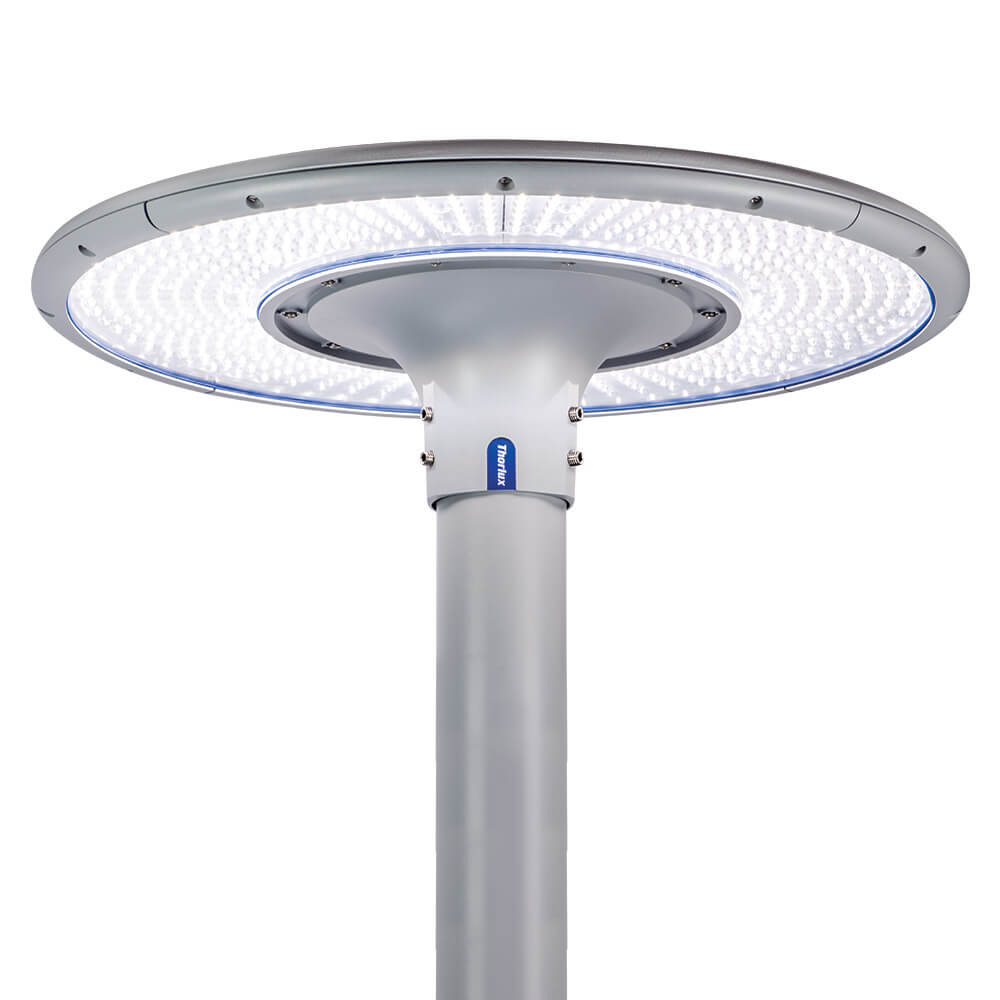

Juno D
High output, centrally mounted luminaire with 360° light distribution (symmetrical and asymmetrical) and zero upward light for higher mounting heights.
Features
Lower mounting heights
Photometrically optimised for lower mounting heights.
Feature included in:
- A
- B
- C
* Juno A & C up to 6m
* Juno B up to 10m
Improved uniformity
Excellent photometric performance for improved uniformity at wider spacings.
Feature included in:
- A
- B
- C
A lens for every LED
A dedicated lens for each LED focuses the light, providing supremely efficient optical performance and excellent scheme uniformity.
Feature included in:
- A
- B
- C
- D
The ideal solution when efficiency if key
100,000 hour LED life reduces maintenance costs. Improved lumen depreciation compared to traditional discharge lamps.
Feature included in:
- A
- B
- C
- D
Juno & Features
Asymmetric distribution
Asymmetric versions ensure light is distributed only where needed, increasing efficiency and reducing obtrusive light.

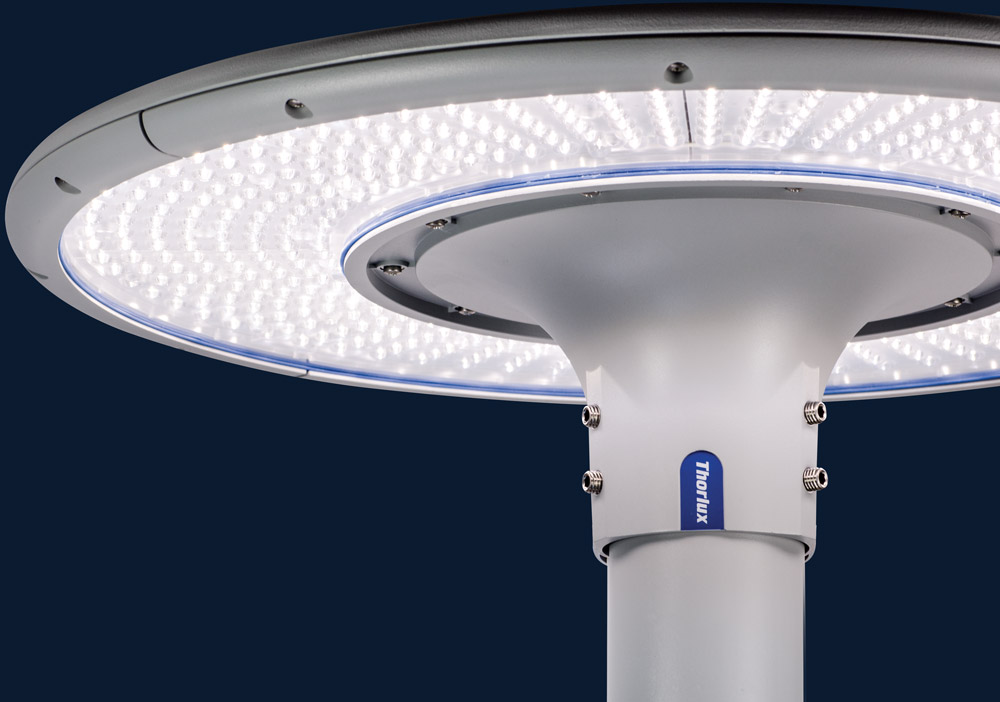

Inside the Juno D
2Column mount casting
Strong high pressure die-cast aluminium casting with centralising ribs and six fixing points for secure central mounting. Finished full polyester powder coat silver (RAL9006).
3Control gear
Fully replaceable control gear. All electronic components have the same rated life as the LEDs.
4Cover clamps
Strong high pressure die-cast aluminium castings provide uniform compression of the sealing gasket for excellent IP66 seal, finished full polyester powder coat silver (RAL9006).
5Silicone gaskets
Long life thermally stable silicone gaskets maintain the IP rating for the life of the luminaire.
64mm thick cover
4mm thick UV stabilised polycarbonate cover rated IK10.
7LED lenses
Custom made acrylic lenses. A dedicated lens for each LED ensures the most efficient distribution of light from each LED.
8LED PCBs
Four replaceable medium power LED PCBs with Thorlux patented LUX Guard current sharing technology.
9Die-case alluminium body
Strong high pressure die-cast aluminium top casting with smooth outer surface and internal fins to dissipate heat. Finished full polyester powder coat silver (RAL9006).

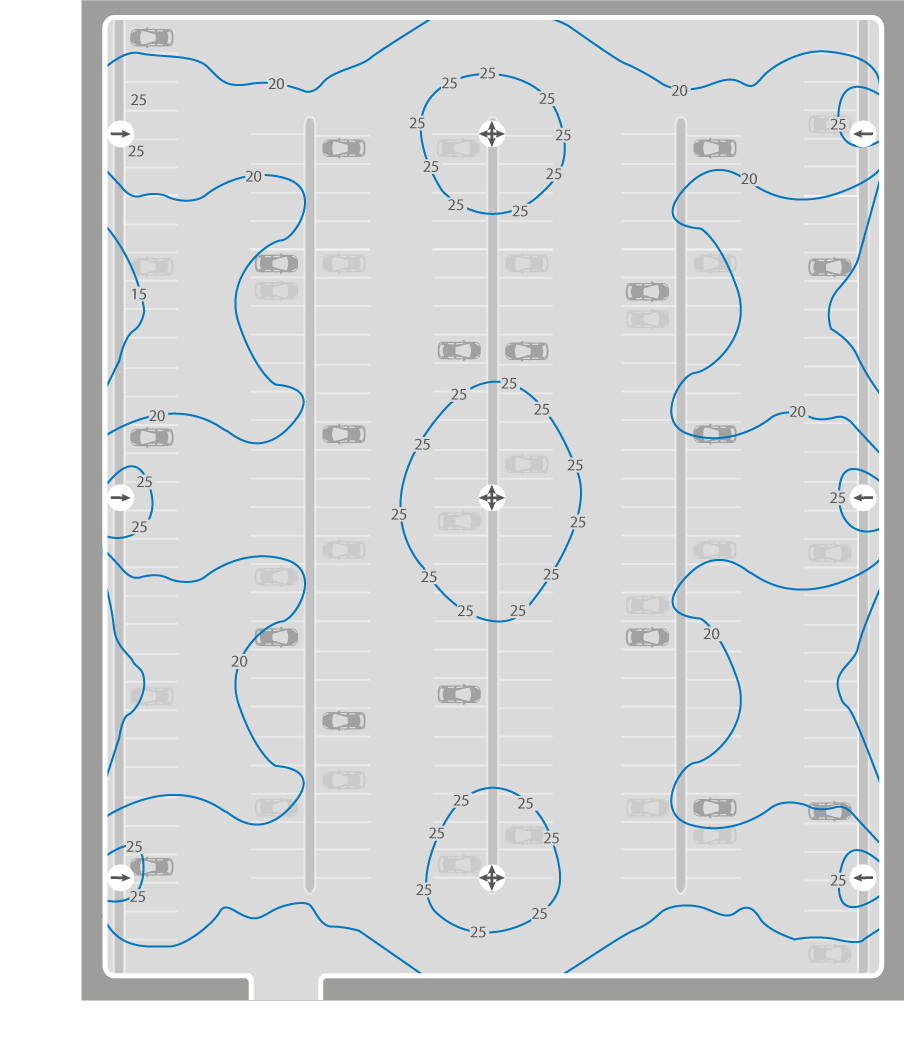

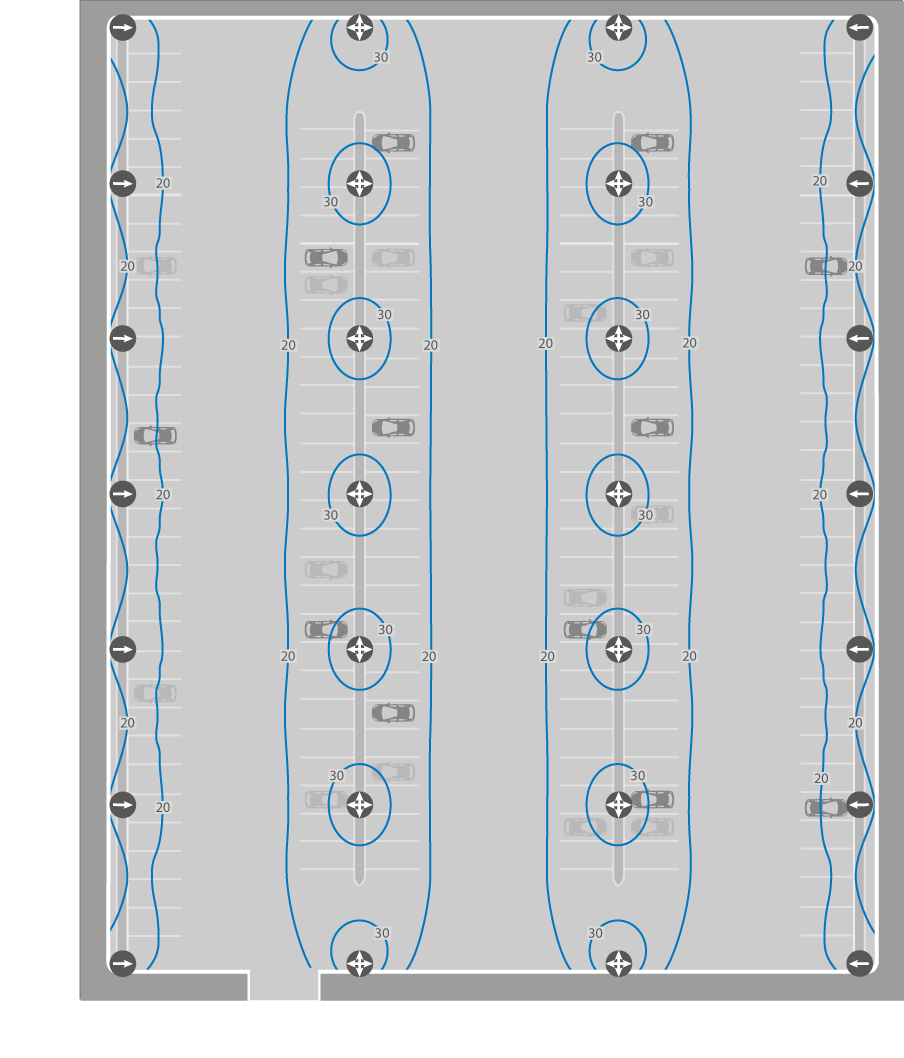

Car park solutions
