Intelligent, compact, vandal-resistant luminaires
The Prismalette 360 is a compact vandal-resistant circular bulkhead with a high efficiency satin polycarbonate cover and strong high-pressure die-cast aluminium body. With SmartScan Radar, microwave presence detector, photocell and emergency versions the Prismalette 360 is suitable for a wide range of internal and external applications.
Two design options.
Plain or hooded.
The Prismalette 360 is available in two versions, both featuring a homogeneously lit diffuser.

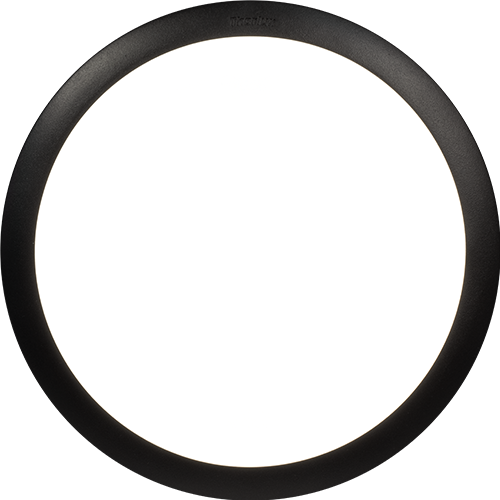

The plain version, for wall or ceiling mounting, provides a 360° light distribution. This version can be semi-recessed using an optional recessing bezel which may be preferable for aesthetics where a shallower install is required, or to match an existing style.

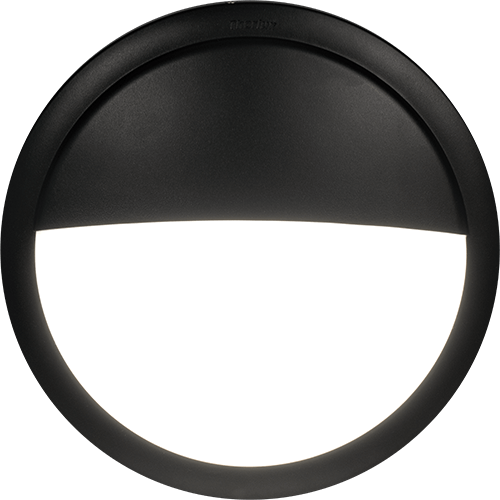

The wall mounted hooded version is designed to reduce obtrusive and nuisance light in residential applications.

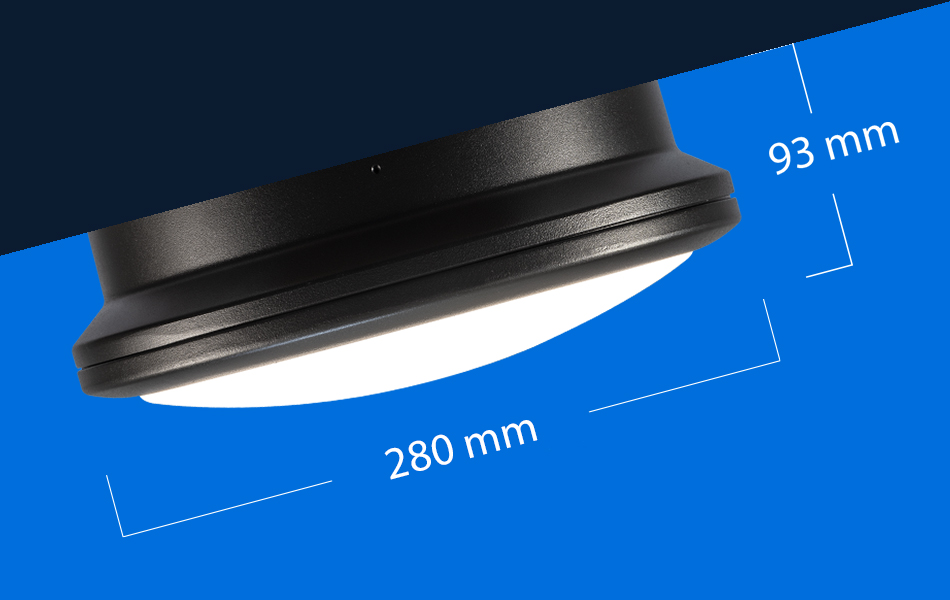

Small but mighty
Everything you need in a compact body
Features

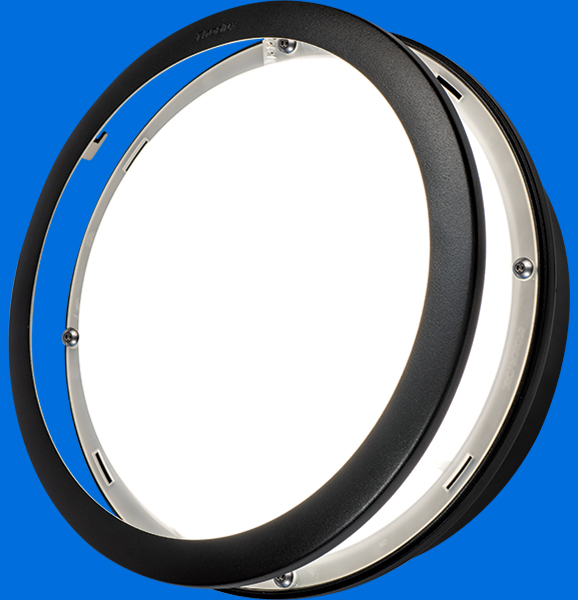

Non-visible cover screws
The aluminium bezel fixes over the cover screws creating a clean screw free appearance as well as reducing the potential for vandalism. The bezel twists and locks into place and is retained by a 2 mm pin hex security screw.
Removable LED module
The Prismalette 360 is supplied with a one piece LED module which simplifies installation and maintenance. The module is a pre-assembled unit which includes the LED PCB, control gear and any emergency or control components and a polycarbonate cover.
During installation, the cast aluminium body is mounted during ‘first fix’ and the LED module added during ‘second fix’ by simply plugging in the mains connector and securing the four captive 3 mm pin hex security screws.
Take control of your lighting
The Prismalette 360 is available with the option of SmartScan, our award-winning lighting management system.
A comprehensive lighting management system can achieve significant energy reduction and assist with operational checks & maintenance. Maintenance teams often aren’t aware of lighting outages until reported by a member of the public or a resident. Yet in locations such as corridors without natural daylight, such lighting failures can create additional hazards and risks. SmartScan monitors the performance of all luminaires, so if there is a failure it is reported promptly to the maintenance teams
1
Compatible SmartScan Internal, SmartScan Radar, SmartScan External and SmartScan Emergency luminaires wirelessly communicate with each other.
2
The Gateway transmits energy performance and status reports for both standard and emergency luminaires to the SmartScan web server.
3
Users employ their chosen device to access the energy performance and status reports.
Lighting control without compromise
Adding lighting control to a luminaire often requires the addition of a sensor which can reduce the structural integrity of a luminaire. Using the latest high frequency sensor technology SmartScan Radar is mounted directly to the LED light engine which is integral to the luminaire therefore protecting these sensitive components. This is ideal for applications where the luminaire aesthetics and impact rating are important factors.
SmartScan Radar offers energy saving through presence detection and daylight control, user control via SmartScan scene setting or timed override from the SmartScan website.
SmartScan Radar benefits
- Radar presence detectors are integral to the luminaire, providing improved impact-resistance and aesthetics.
- Unique 24 GHz sensor with increased sensitivity to small movements whilst being less prone to false detection than traditional ‘microwave’ technology.
- Fully programmable light levels, detection range (sensitivity), time delays and security levels via the SmartScan Programmer.
- New advanced SmartScan technology allows photocell control with the LED lamp on or off.
- Full status monitoring via the SmartScan website.
- Automatic testing and record keeping of emergency luminaires via the SmartScan website.

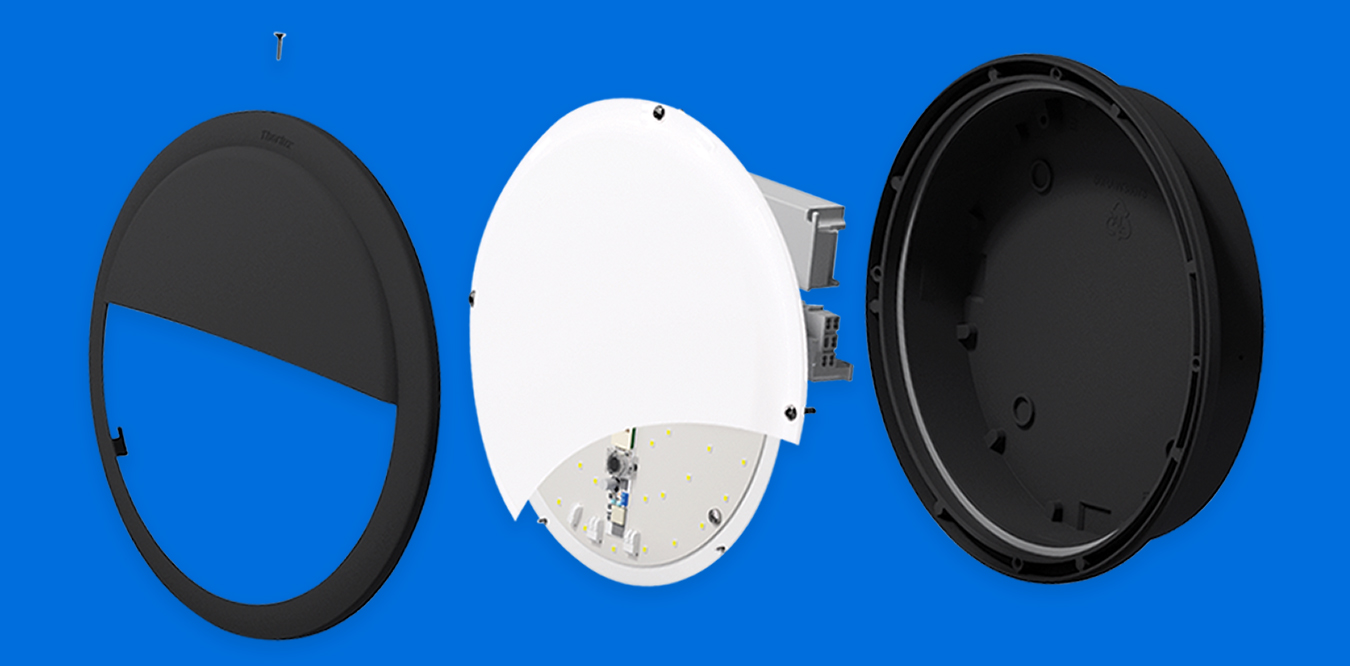

Tamper-resistant retaining screw
Prevents the bezel being easily removed.
Cover bezel
A strong high-pressure die-cast LM6 aluminium bezel hides cover screws and deters curious vandalism.
Impact-resistant cover
Shallow depth 3 mm thick UV stabilised satin polycarbonate cover rated IK11.
LED PCB
Replaceable LED PCBs and Thorlux patented LUX Guard LED protection technology.
Control gear
Fully replaceable control gear with an option for SmartScan Emergency, AutoTest and integral emergency to operate for three hours in the event of power failure.
Silicone gasket
Long life thermally stable silicone gasket which will maintain the IP rating for the life of the luminaire.
Die-cast aluminium body

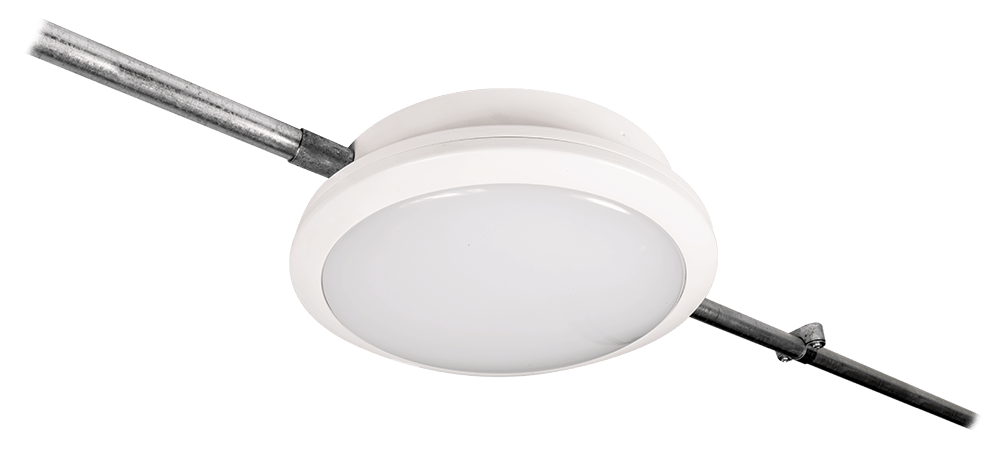

A strong high-pressure die-cast LM6 aluminium body which is deep enough to accept conduit entry. Full polyester powder coated for a durable long lasting finish.
Engineered for fast installation
4 simple steps
1

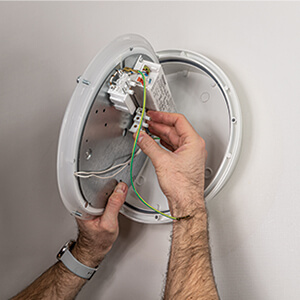

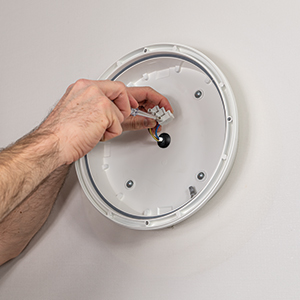

Fix body to mounting surface and install mains connector.
2

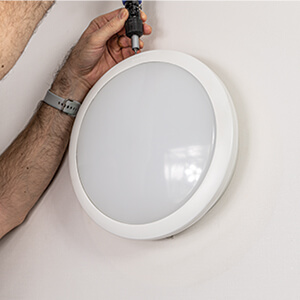

Connect mains connector to mains socket on the LED module.
3

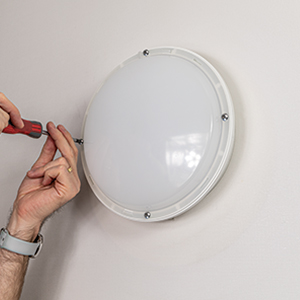

Fix LED module using four captive screws.
4
Twist and lock bezel into place and secure with the locking screw.
Fit and forget emergency solution
Prismalette
The Prismalette is a long established bulkhead for social housing applications. With its high impact, vandal-resistance and long life cast aluminium body it has been the product of choice for many providers in this sector for decades.
View Product PagePrismalette Pro

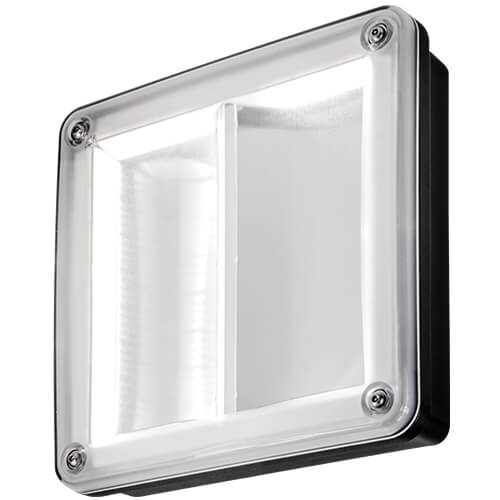

Prismalette Pro added lighting distributions to the range with wall and ceiling versions controlling the light ensuring it is distributed where needed, increasing spacings and reducing obtrusive light.
